2S 6A PR %8 DS 4000

The width of groove on the front face is 2mm, and the distance between the grooves are 6mm, and there are 4000 pcs / m² hole with a diameter of 10mm on the backside of our panel.
Perforation Ratio: %8
Frequency Type: It provides high acoustic absorption in low, medium and high frequency sounds.

Product Details Technical Data

2S 14A PR %8 DS 4000

The width of groove on the front face is 2mm, and the distance between the grooves are 14mm, and there are 4000 pcs / m² hole with a diameter of 10mm on the backside of our panel.
Perforation Ratio: %8
Frequency Type: It provides high acoustic absorption in medium and high frequency sounds.

Product Details Technical Data

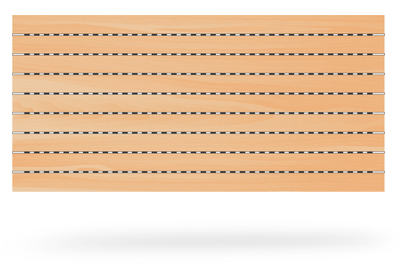

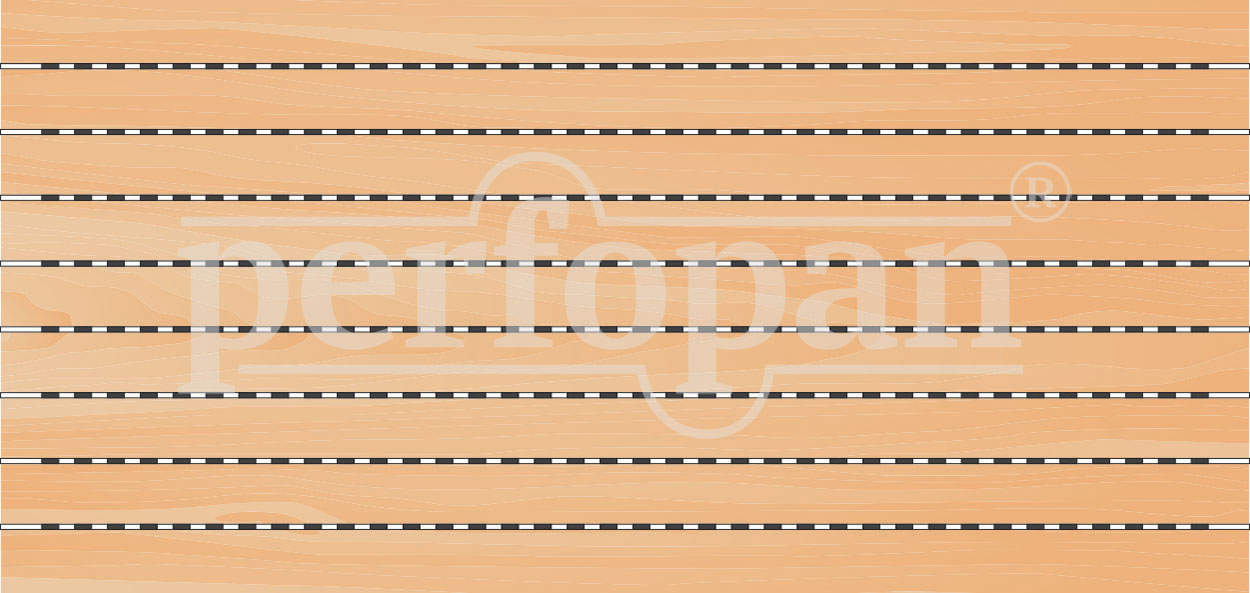

2S 30A PR %4 DS 2000

The width of groove on the front face is 2mm, and the distance between the grooves are 30mm, and there are 2000 pcs / m² hole with a diameter of 10mm on the backside of our panel.
Perforation Ratio: %4
Frequency Type: It provides high acoustic absorption in low frequency sounds.

Product Details Technical Data

3S 5A PR % 13 DS 4000

The width of groove on the front face is 3,2mm, and the distance between the grooves are 4,8mm, and there are 4000 pcs / m² hole with a diameter of 8mm on the backside of our panel.
Perforation Ratio : %13
Frequency Type : It provides high acoustic absorption in medium and high frequency sounds.

Product Details Technical Data

3S 13A PR % 13 DS 4000

The width of groove on the front face is 3,2mm, and the distance between the grooves are 13mm, and there are 4000 pcs / m² hole with a diameter of 8mm on the backside of our panel.
Perforation Ratio: %13
Frequency Type: It provides high acoustic absorption in medium and high frequency sounds.

Product Details Technical Data

4S 12A PR % 16 DS 4000

The width of groove on the front face is 4mm, and the distance between the grooves are 12mm, and there are 4000 pcs / m² hole with a diameter of 10mm on the backside of our panel.
Perforation Ratio: %16
Frequency Type: It provides high acoustic absorption in medium and high frequency sounds.
